The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
airFiber X radio sold separately.
The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

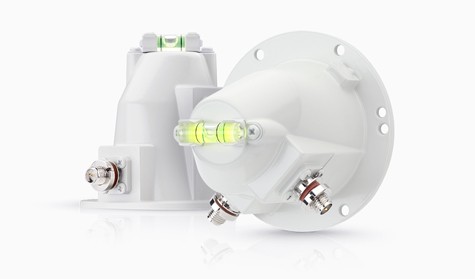

The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, converts the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.
|Dimensions||1050 x 1050 x 421 mm
(41.34 x 41.34 x 16.57″)
|Frequency||5.1 – 5.8 GHz|
|Wind Survivability||200 km/h (125 mph)|
|Wind Loading||1,779 N @ 200 km/h
(400 lb @ 125 mph)
|F/B Ratio||42 dB|
|ETSI Specification||EN 302 326 DN2|
|Mounting||Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included|
