AirMAX RocketDish, 5 GHz, 30 dBi Antenna
Availability:
Available on backorder
5GHz, 26″, 30dBi dual pol. antenna, pair with Rocket M5
MVR 5,328.00
Available on backorder
Breakthrough Design and Performance
The powerful airMAX® RocketDish™ Antennas feature carrier-class construction and 2×2, dual-polarity performance.
Installing the RocketDish™ Antenna
Industrial-Strength Construction
airMAX® Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

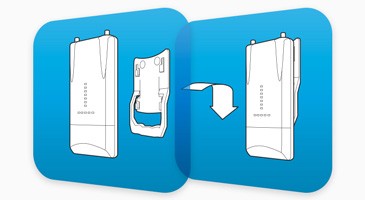

Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.
| RD-5G30 | |
|---|---|
| Dimensions | 650 x 650 x 304 mm (25.6 x 25.6 x 11.97″) |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 4.9 – 5.8 GHz |
| Gain | 4.9 GHz: 26 dBi 5 – 5.9 GHz: 30 dBi |
| HPOL Beamwidth | 5° (3 dB) |
| VPOL Beamwidth | 5° (3 dB) |
| F/B Ratio | 34 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
