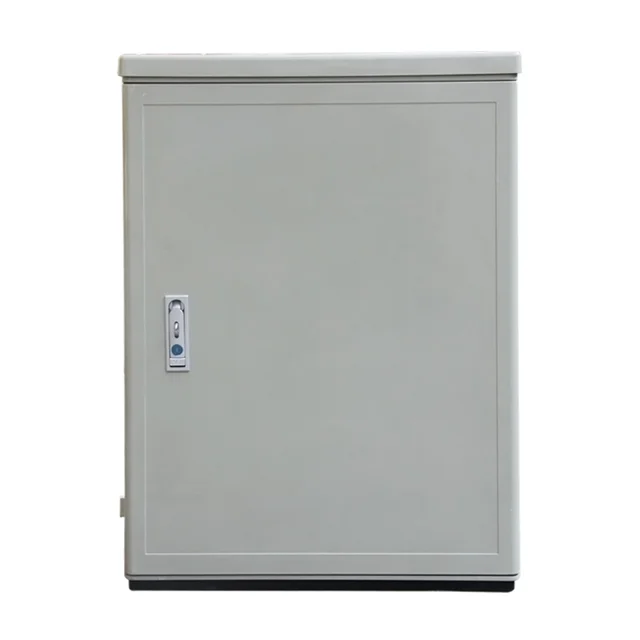

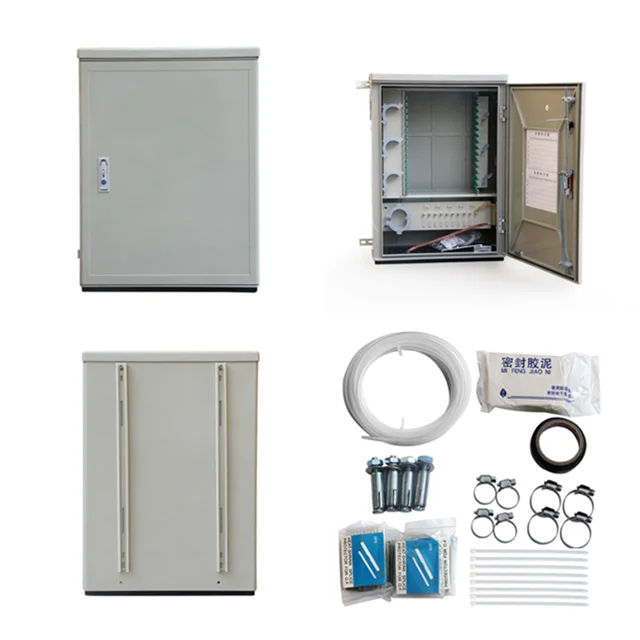

FTTH Outdoor 96 Core Cross Connect Cabinet
High Quality 96 Core FTTH Optical Distribution ODC Telecom Outdoor Cabinet
Product details
| Product name | wall mounted ODF cabinet |
| Pre-Terminated Connector | LC, SC, FC, ST |
| Polished | UPC or UPC |
| Fiber Mode | SM/MM |
| Fiber Count | 96-288 Fibers |
| Size | 600*450*280MM |
| Jacket Color | Grey |
| Jaket Material | SMC |
| Warranty | Limited Life |
| Application | FTTH Solution |
| Product Keywords | ftth fdt,Optical Distribution Cabinet ODC,Telecom aluminum outdoor cabinet |
Features:
connecting trunk and distributing optical fiber cable.
capability of splicing, storage, and fiber cable distribution.

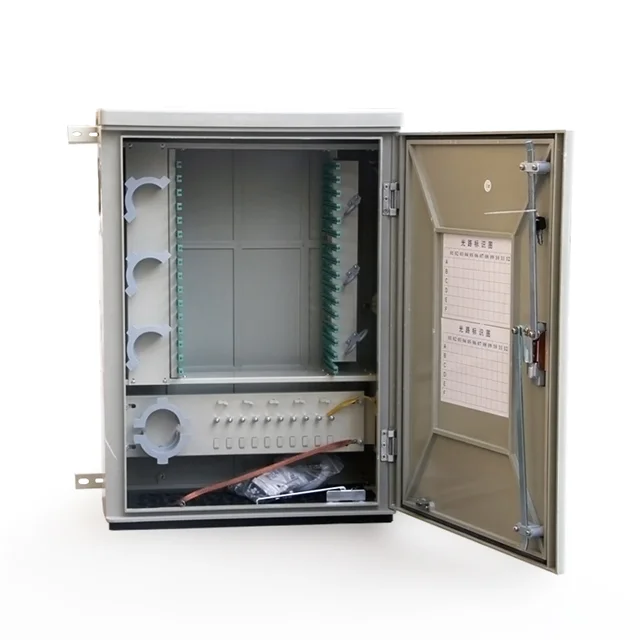

Fiber optic cabinet, max up to 12/24/48 trays, 12 ports one tray, total 144/288/576 ports, FC,ST or SC,LC adapter can be installed.
Optional cabinet material: SMC, stainless steel.
Effective:rain-proof, dust -proof,pests-proof
Technical parameters:
Operation Conditions:
Work Temperature: -40C~+55C
Relative humidity:≤95%(+30C)
Atmospheric pressure: 70KPa~106 KPa
Photoelectric property
Insertion loss: ≤0.2dB
return loss:PC≥45 dB UPC≥50dB APC≥60dB
Isolation resistance between high voltage protection place and frame ≥20000MΩ(DC500V)
withstand voltage between high voltage protection place and frame ≥3000V(DC)/1min (no puncture,no flashover)
Cabinet size:
| Type | Size mm |

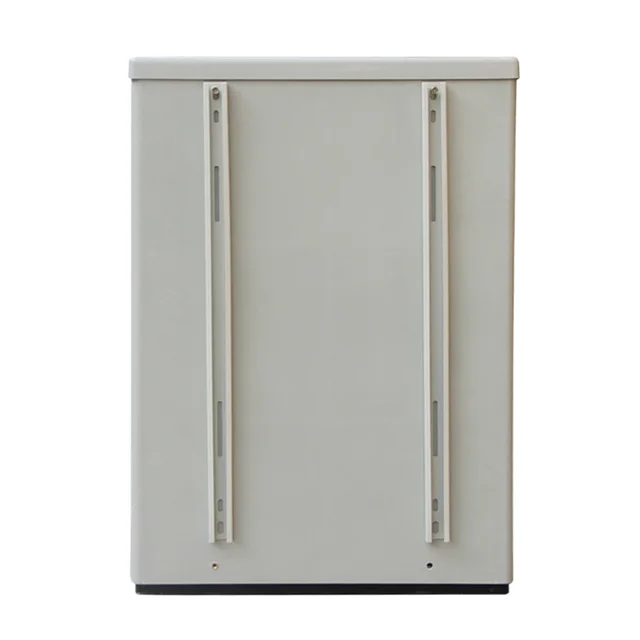

| Wall Mount 96Cores | 600*450*280MM |

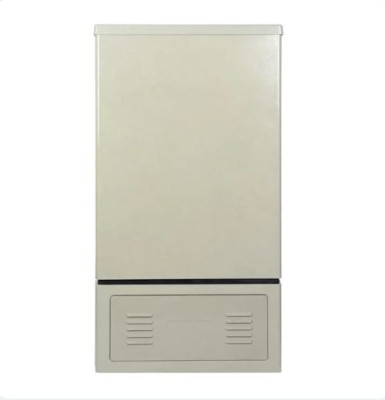

| Floor Standing 96cores | 1030*550*310MM |
| Wall Mount 144 cores | 770*540*300mm |
| Floor Standing 144 cores | 750*550*310MM |
| Floor Standing 288 cores | 1450*750*320MM |
| Floor Standing 576 cores | 1450*750*540MM |
